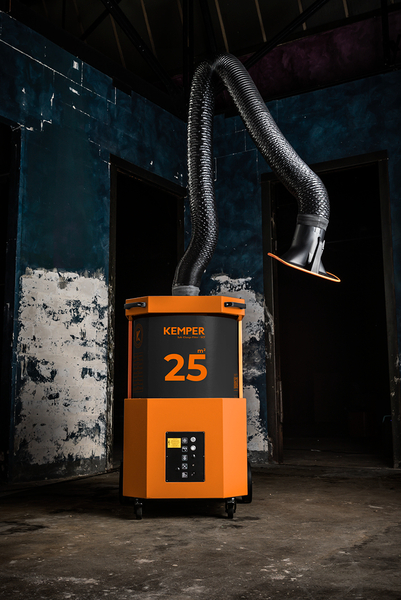

SmartFil is a mobile welding fume filtering unit for regular use in welding with medium amounts of fumes and dust. The disposable filter of the extraction unit has a particularly high filter surface of 25 m² and is changed completely contamination-free when saturated. SmartFil effectively protects the user from welding fumes and is particularly economical thanks to its long service life.
| Filter Stages | 2 |
| Filter Method | Storage Filter |
| Filter Surface | 25 m² |
| Type of Filter | Safe Change Filter |
| Filter Material | Cellulose with Polyester Nanofibre Fleece |
| Filter Efficiency | > 99.5 % |
| Filter Class | E12 |
| Additional Filters | Pre-filter (Aluminium) |
| Extraction Capacity | 1100 m³/h |
| Dimensions (w x d x h) | 795 x 836 x 1169 mm |
| Weight | 131 kg |
| Motor Power | 1.5 kW |
| Power Supply | 3 x 400 V / 50 Hz |
| Rated Current | 3.1 A |
| Control Voltage | 24 V, DC |
| Noise Level | 70 dB(A) |
| IFA Certification | W3-Approved |
| Fan Type | Radial Fan |
| Exhaust Arm Type | Flexible Exhaust Arm |
| Length of Exhaust Arm | 2 m |
